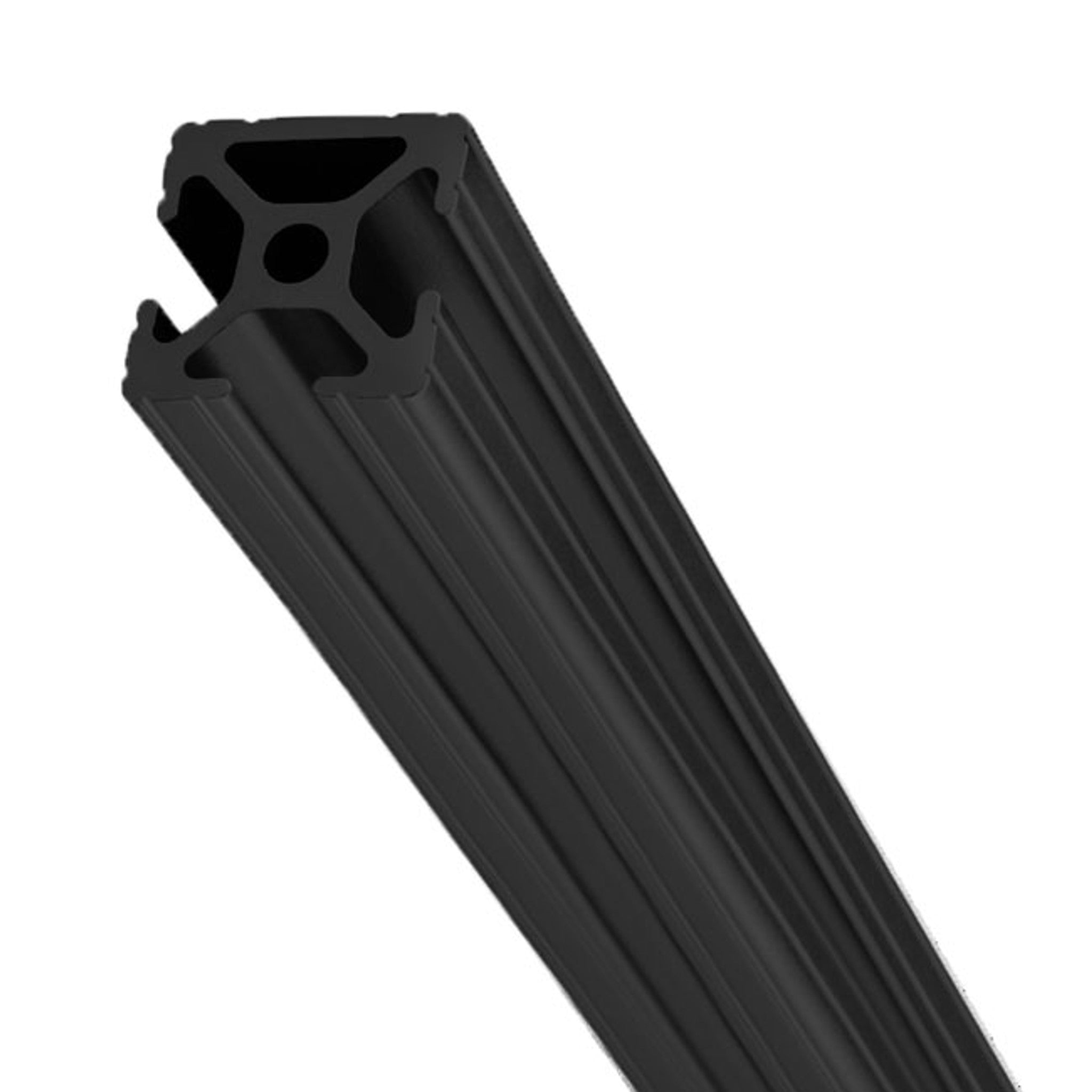

The ATI STAR Mounting Rail is the primary building block of the STAR mounting system for mounting either Straton Pro or Straton Flex LED fixtures. Available in multiple sizes and capable of supporting up to three of the Straton Pro 204s.
Durable & Lightweight Design
Made from anodized aluminum that is durable, corrosion-resistant, and will not fade. Ideal for use in saltwater environments.
Seamless Integration
Designed for use with both the ATI STAR Tank Mounting Legs and the ATI STAR Hanging Kit. Mount the rail to the side of the tank using the STAR Mounting Legs or suspend the entire rail above the tank using the STAR Hanging Kit.
Specifications
Compatible With(sold separately): ATI Straton Pro 102, 153, & 204 (both Gen 1 and Gen 2) and ATI Straton Flex 102 & 153 (Gen 2). Not compatible with the original Straton fixture.
Use With(sold separately): ATI STAR Tank Mounting Legs or ATI STAR Hanging Kit for Mounting Rail
Available Sizes: 25 in., 37 in., 49 in., 61 in., 73 in.
Maximum # of Fixtures:
25”: 1x Straton Pro 102, 153, or 204
37”: 1x Straton Pro 102, 153, or 204; 1x Straton Flex 102
49”: 2x Straton Pro 102, 153, or 204; 1x Straton Flex 102
61”: 2x Straton Pro 102, 153, or 204; 1x Straton Flex 153
73”: 3x Straton Pro 102, 153, or 204; 1x Straton Flex 153
Dimensions: Rail Length. x 1.0 in. x 1.0 in. (L x W x H)
Weight: 1.3 lbs. (25”), 1.7 lbs. (37”), 2.3 lbs. (49”), 2.8 lbs. (61”), 3.3 lbs. (73”)
Color: Black
What's Included (i.e., what’s in the box)
ATI STAR Mounting Rail
