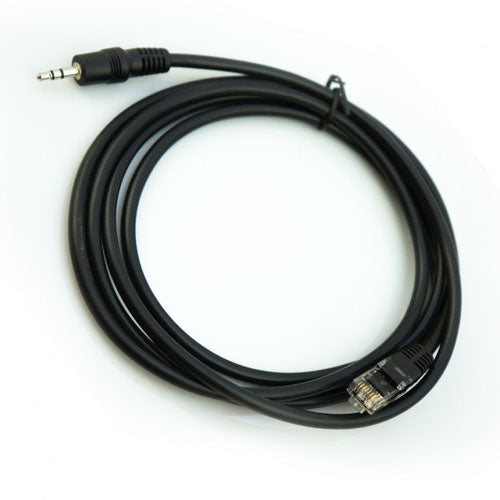

Icecap Alternating Gyre Mode Cable
This 6.5ft cable allows you to run your Maxspect Gyre in both forward and reverse direction by using one full Variable Speed port on your Apex to connect two 0-10v signals to a single IceCap Gyre Interface Module.
ALTERNATE GYRE MODE MODIFIED CABLE FOR ICECAP GYRE INTERFACE MODULE
This cable allows you to run your Maxspect Gyre in both forward and reverse direction by using one full Variable Speed port on your Apex to connect two 0-10v signals to a single IceCap Gyre Interface Module.
On your APEX, you will need to set up two Variable Speed outlets to control a single gyre. The first variable speed outlet will control the speed of the pump. You can set speeds ranging from 20% to 100%. The second variable speed outlet will control the direction of the pump. Set it to 0% and the pump will more in forward direction... set it to 100% and the pump will more in reverse direction.
***Requires a full Variable Speed port on your APEX Controller
Length: 6.5ft (2 meters)
End 1: ethernet for 0/10 port
End 2: 2.5mm stereo
